1000W 12V Pure Sine Wave Inverter

The 1000W 12V Pure Sine Wave Inverter is engineered to meet the rigorous demands of overlanding and off-roading enthusiasts. This inverter efficiently converts 12V DC battery power into clean, reliable 120V AC electricity, ensuring your essential devices and appliances operate seamlessly, even in remote locations.

Key Features:

• Continuous Output Power: 1000W
• Peak Power Rating: 2000W
• Output Voltage: 120V
• Output Frequency: 60 Hz ± 0.1%
• AC Output Sockets: 2
• AC Terminal Block: 1
• USB Power Port: 5V/2.1A

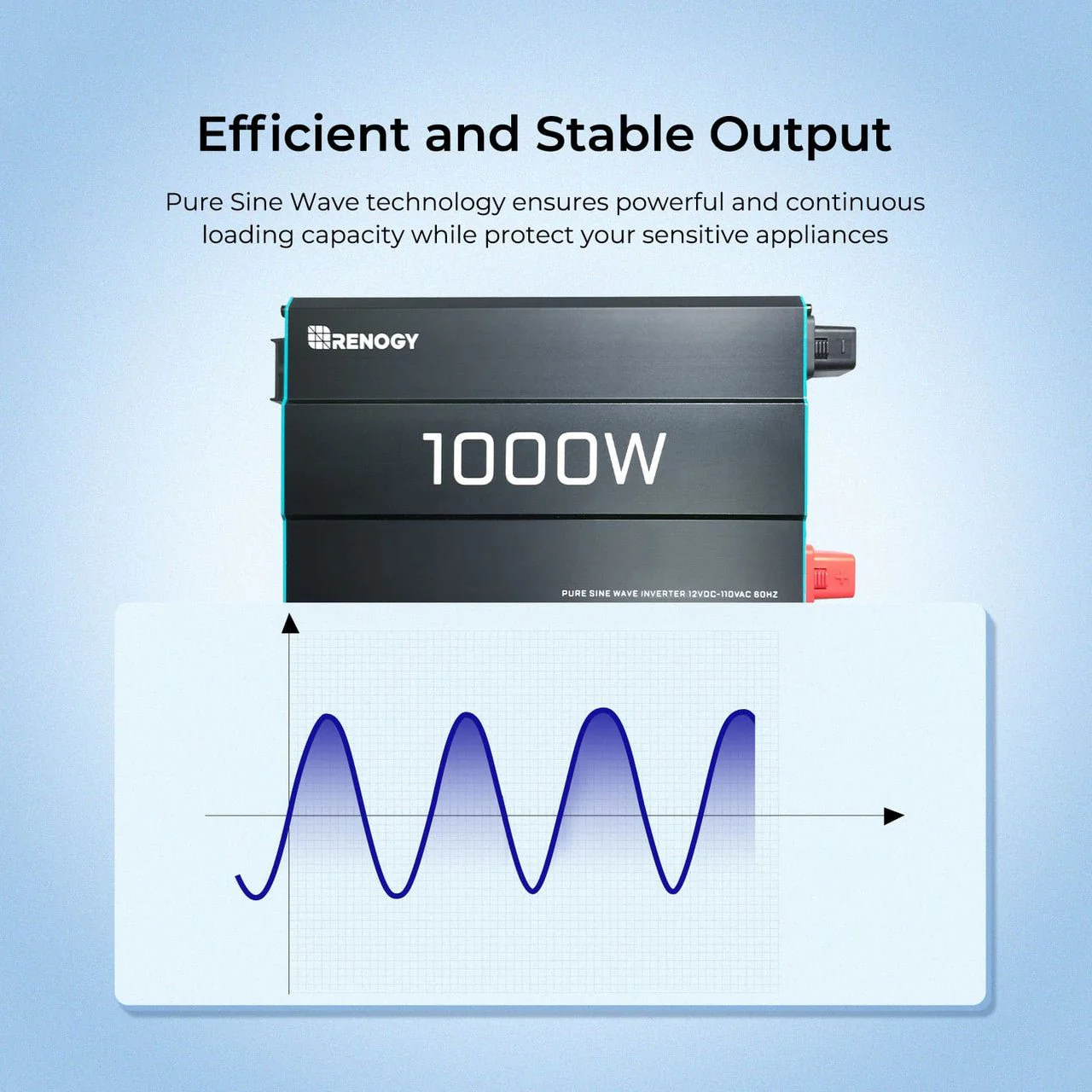

• Output Waveform: Pure Sine Wave
• Nominal Efficiency: > 90%
• Total Harmonic Distortion: < 3% Linear Load; < 5% Non-linear Load

Mechanical Specifications:

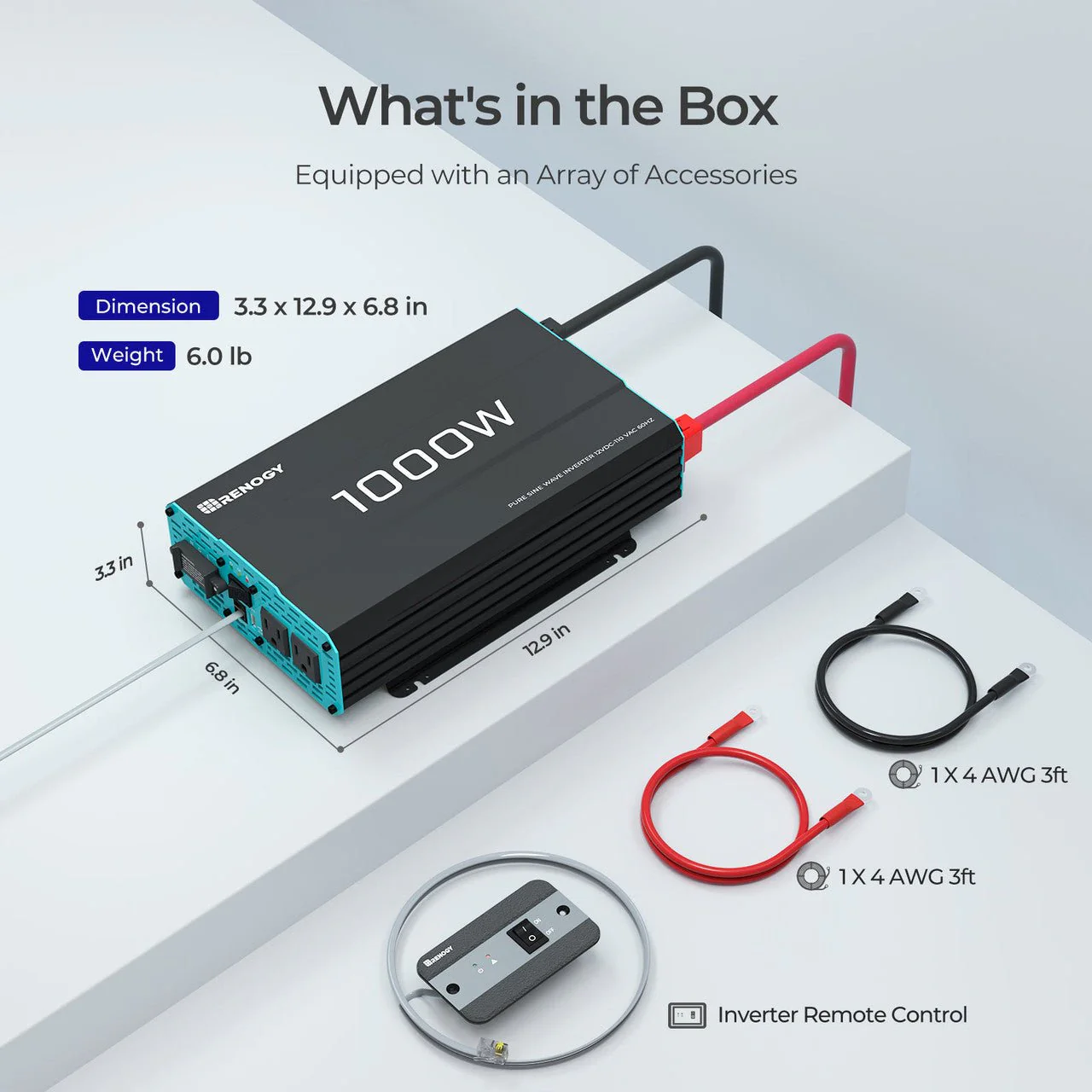

• Dimensions: 12.9 x 6.8 x 3.3 in
• Weight: 6.0 lb

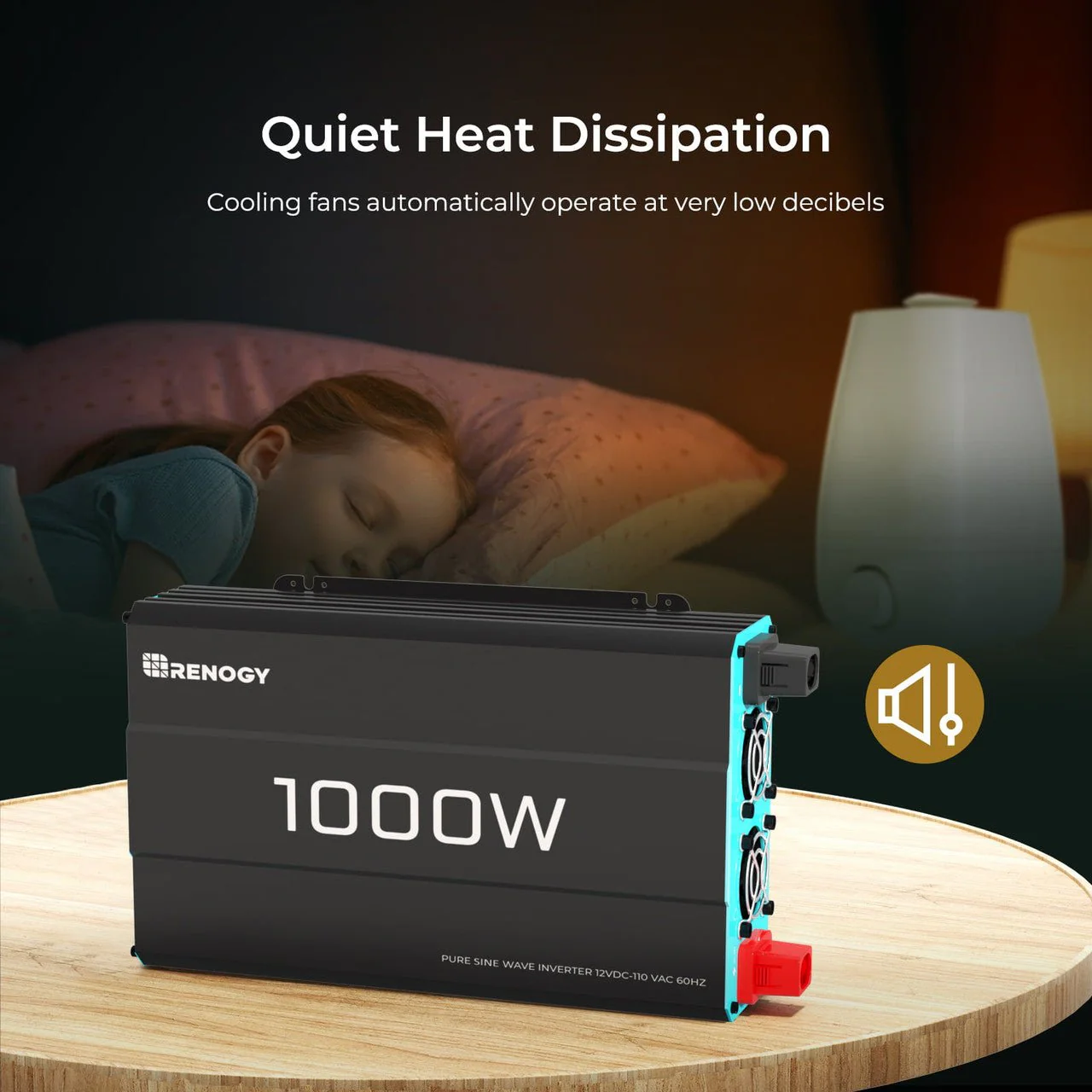

• Cooling Fan: Thermally controlled

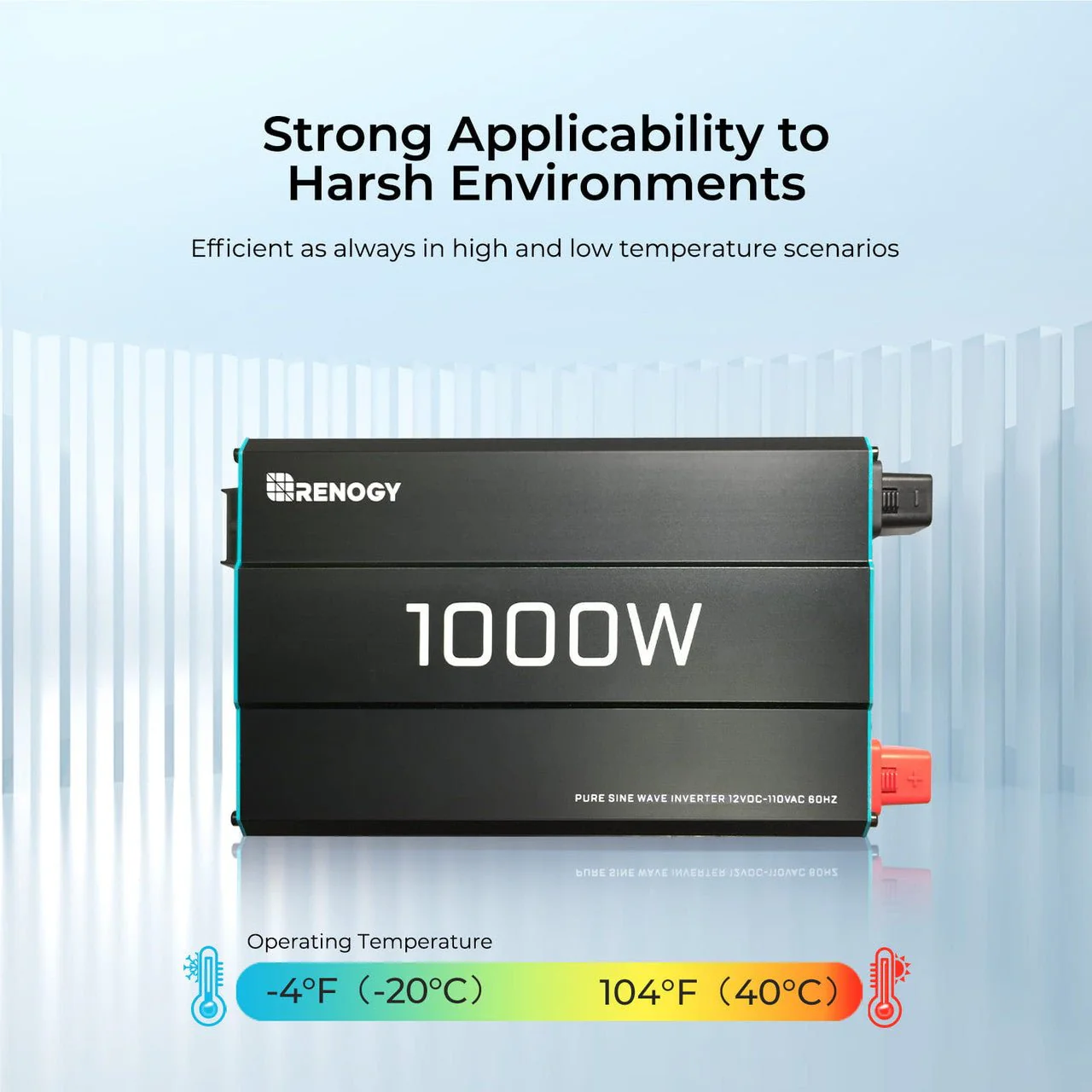

• Operating Temperature Range: -4°F to 104°F

Input Specifications:

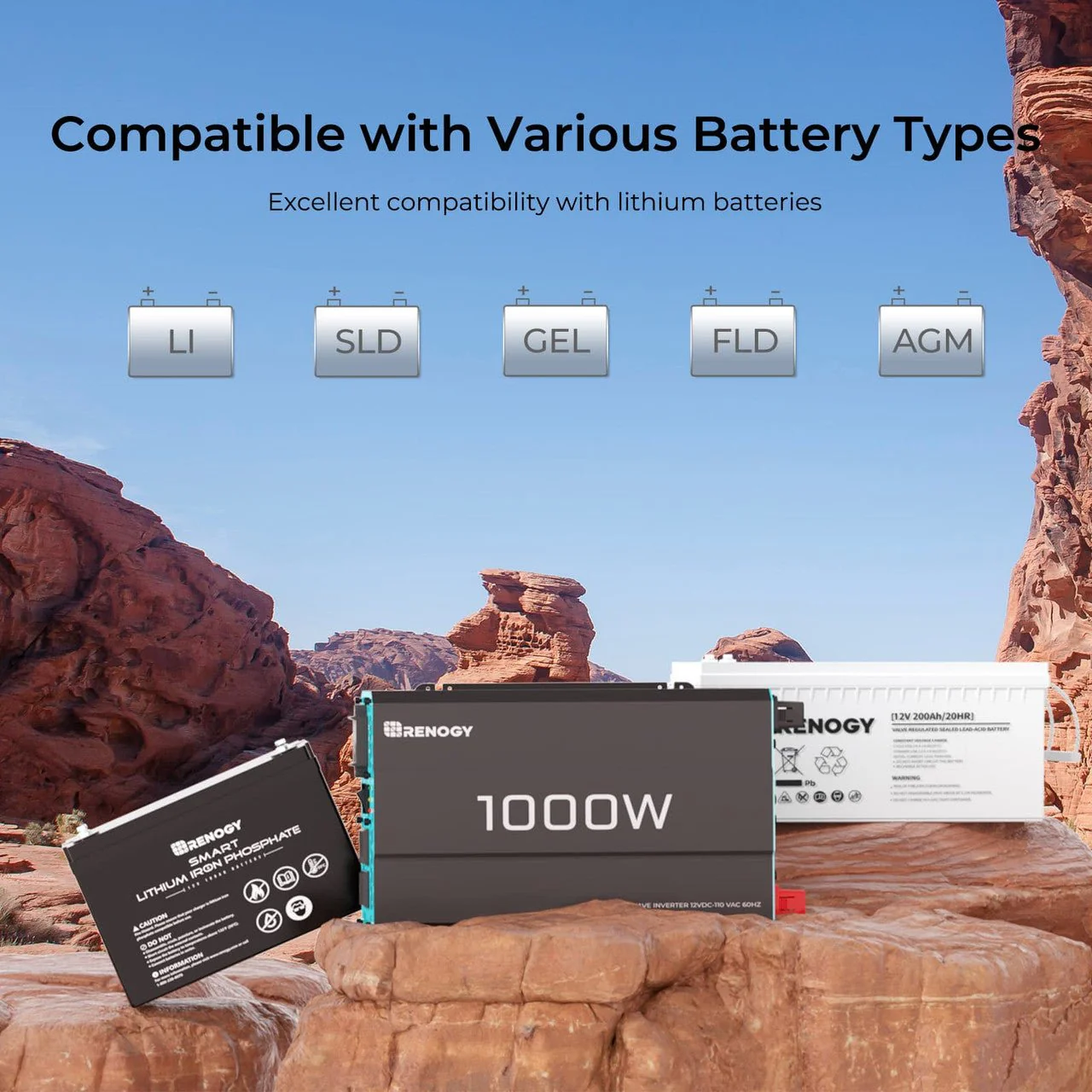

• Nominal Input Battery Voltage: 12V
• Battery Terminal Size: M8

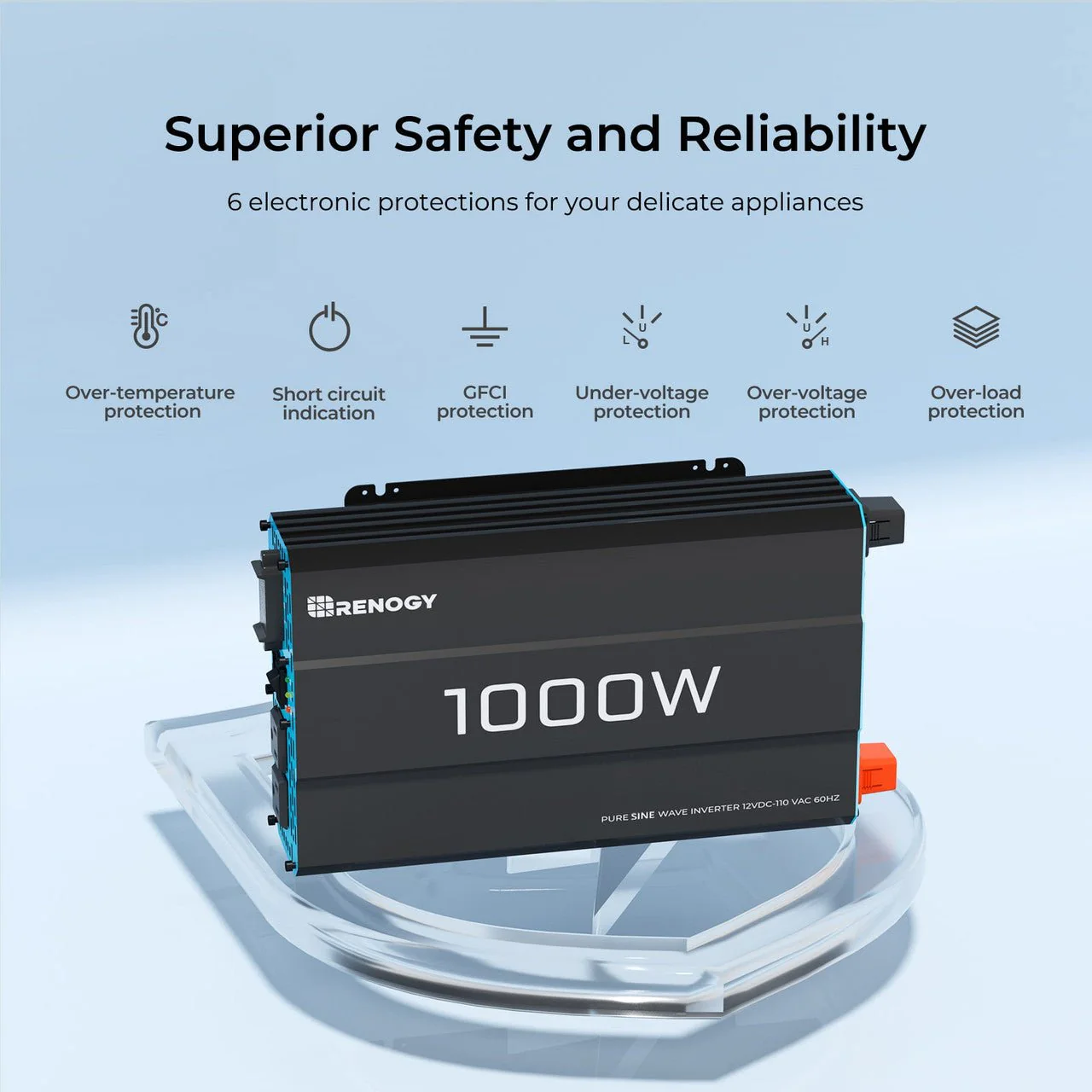

• Low Battery Alarm: 10.5V ± 0.5V DC
• High Voltage Alarm: 16V
• Battery Low Shutdown: 10.0V ± 0.5V DC
• Over Voltage Shutdown: 16.5V ± 0.5V DC

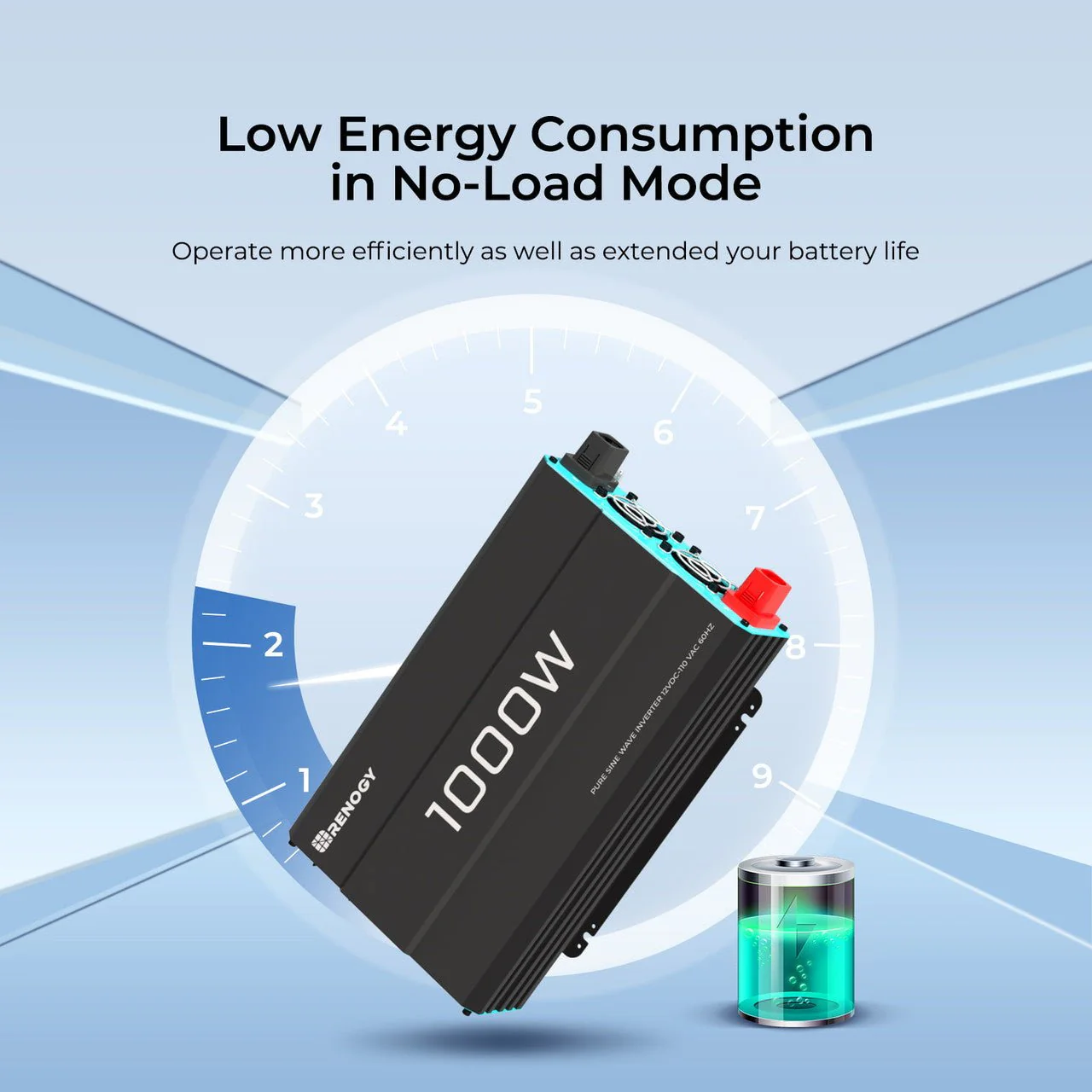

• No Load Current Draw: < 1A

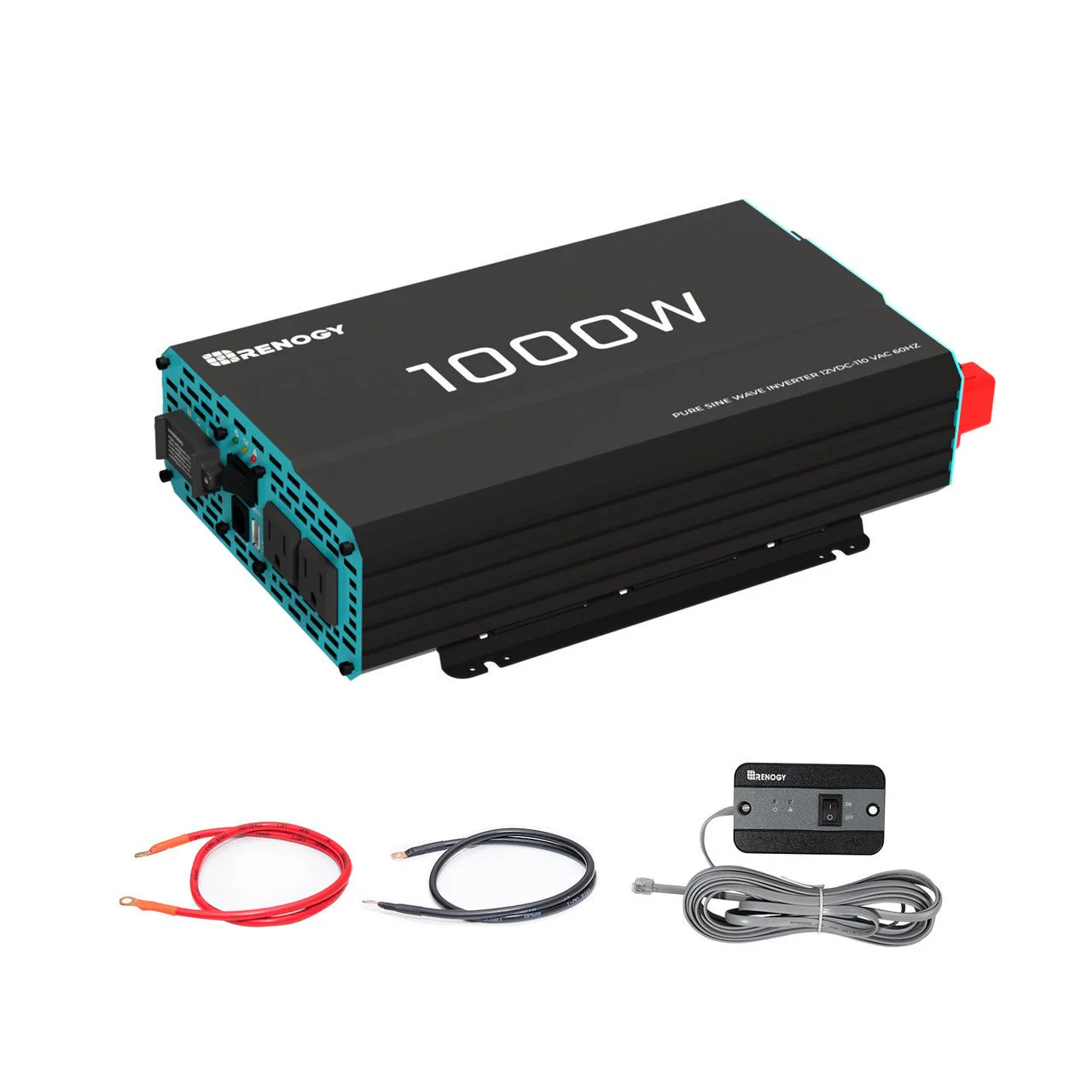

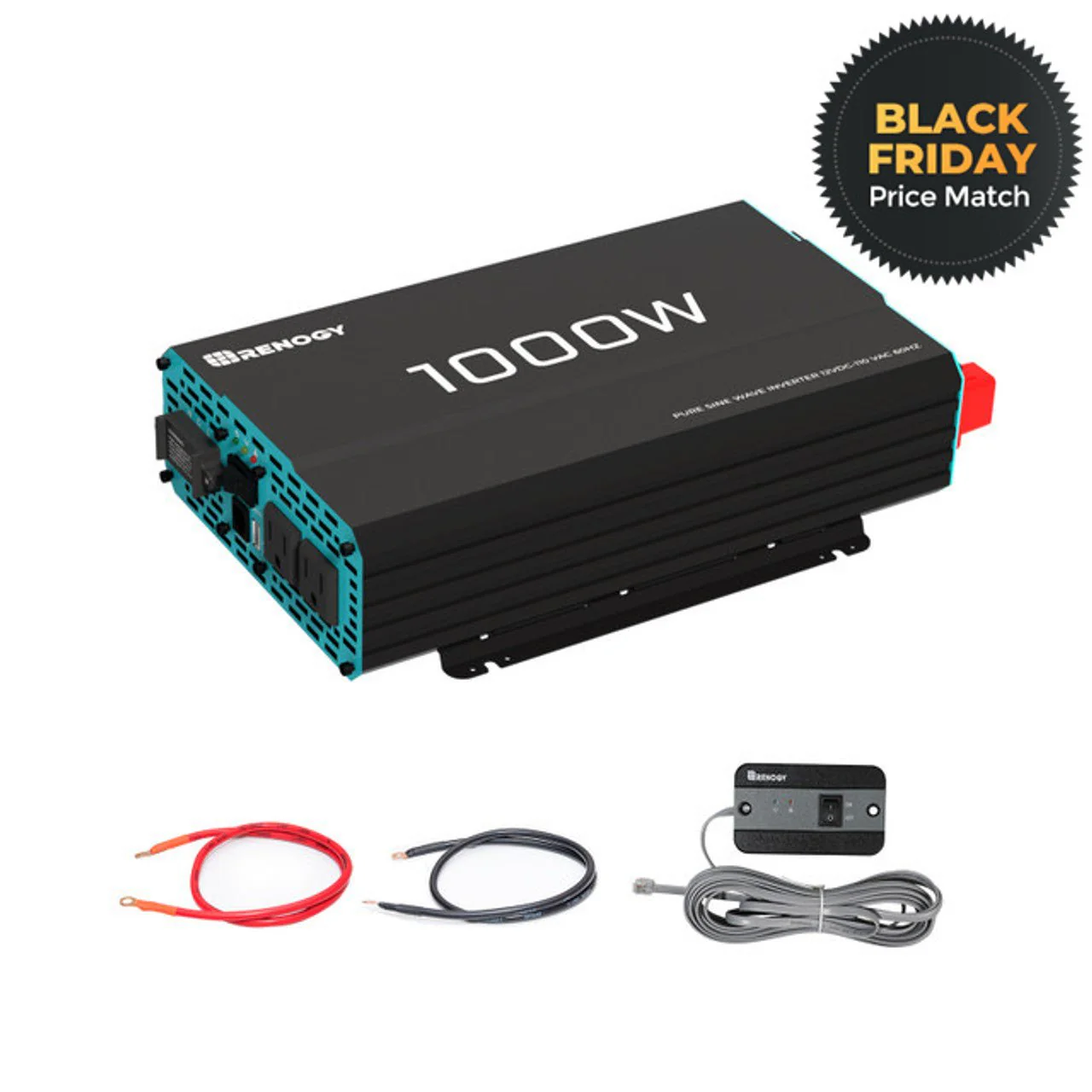

Accessories Included:

• Cable: 4AWG 3ft

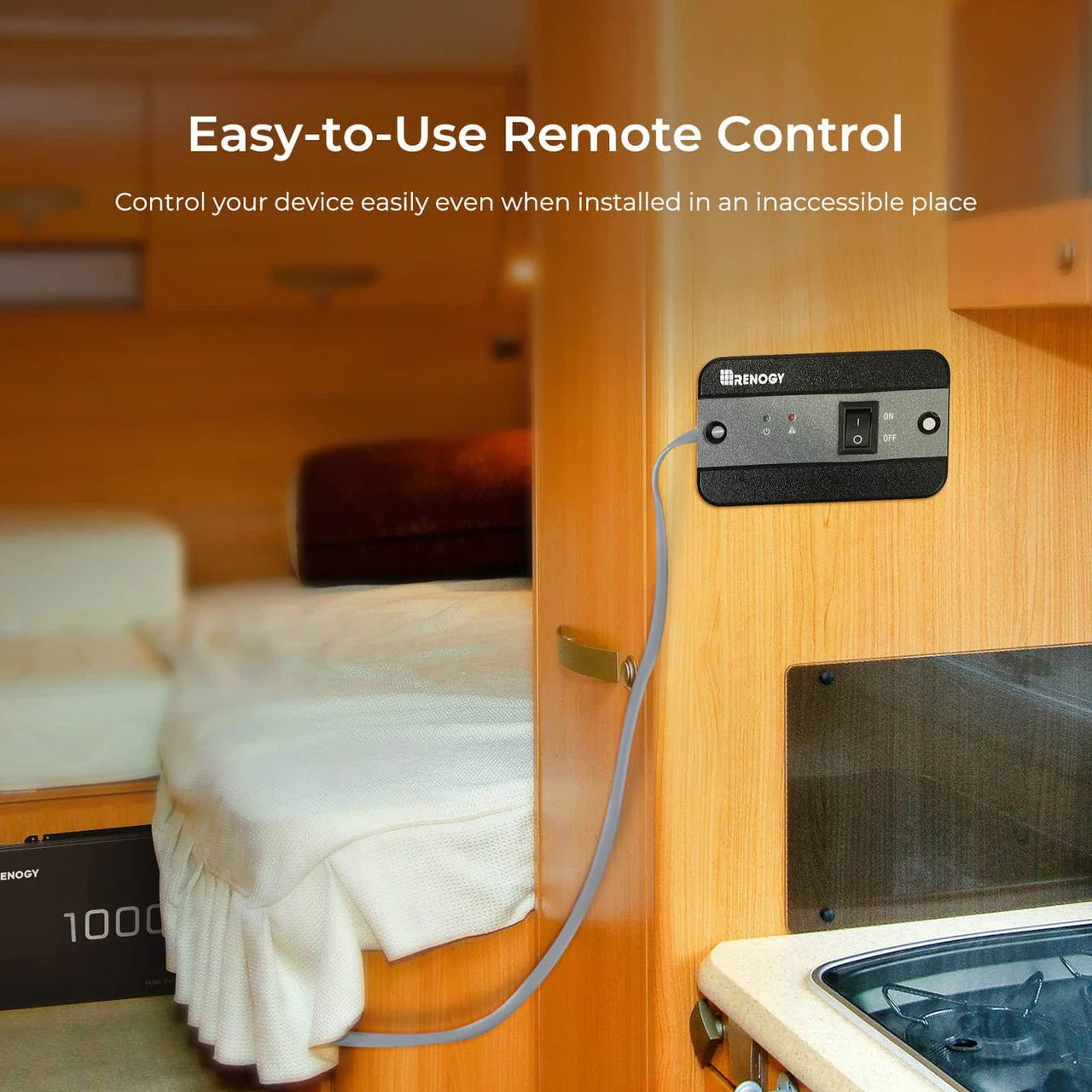

• Inverter Remote Control: 16.4 ft

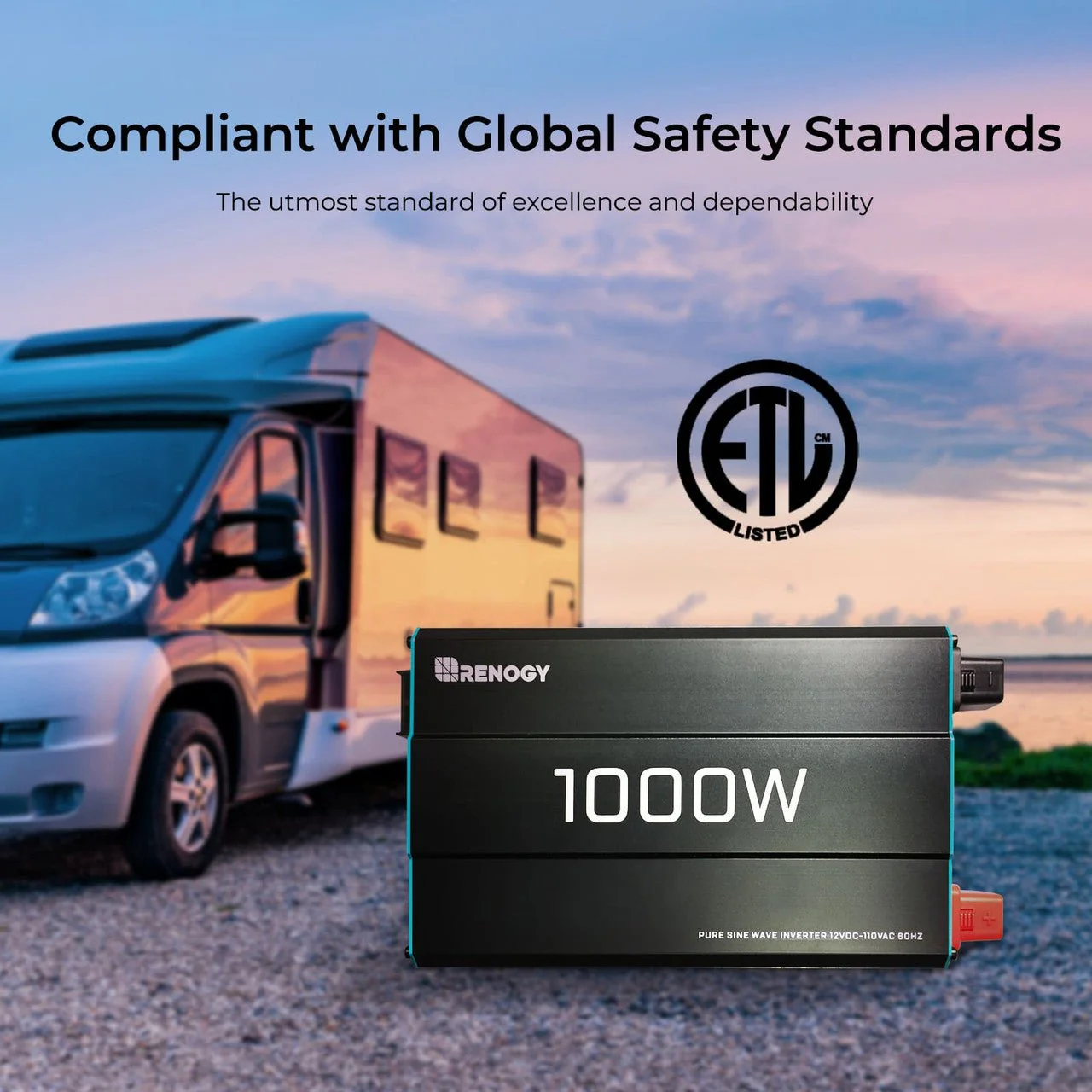

Certifications:

• ETL Listed to UL 458 and CSA 22.2 NO 107.1-01
• FCC Part 15 Class B

Warranty:

• Material and Workmanship Warranty: 1 Year

Equip your vehicle with the 1000W 12V Pure Sine Wave Inverter to ensure consistent and clean power supply during your off-road and overland journeys. Its robust design and high efficiency make it an essential component for powering your adventures.
